NMB 09225SE-12Q-FT-DW fan

Name: NMB 09225SE-12Q-FT-DW fan
Brand: HORVEX
SKU: 09225SE-12Q-FT-DW
Price: 10.00 USD
Availability: InStock

SKU: 09225SE-12Q-FT-DW

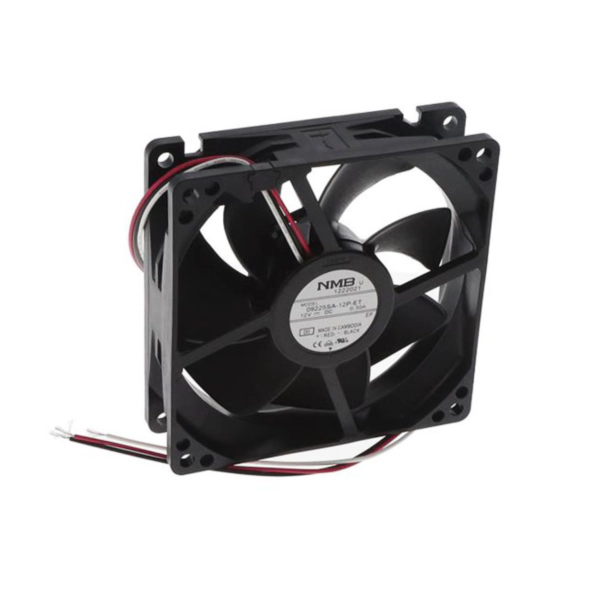

Fan Tubeaxial 12VDC Square – 92mm L x 92mm H Ball 65.0 CFM (1.82m³/min) 3 Wire Leads

Contact us for bulk price

$10,00

Trackable Standard Shipping

6-12 Days

3-6 Days

Payment Methods:

MPN:	09225SE-12Q-FT-DW
Manufacturer:	NMB Technologies Corporation
Voltage – Rated:	12VDC
Air Flow:	65.0 CFM (1.82m³/min)
Noise:	40.0dB(A)
Power (Watts):	3 W
RPM:	3900 RPM
Width:	25.00mm
Fan Type:	Tubeaxial
Series:	09225SE
Size / Dimension:	Square – 92mm L x 92mm H
Static Pressure:	0.293 in H2O (73.0 Pa)
Bearing Type:	Ball
Features:	Auto Restart, Speed Sensor (Tach)
Termination:	3 Wire Leads
Ingress Protection:	IP55 – Dust Protected, Water Resistant
Operating Temperature:	14 ~ 140°F (-10 ~ 60°C)
Approval Agency:	CE, cULus, VDE
Description:	FAN AXIAL 92X25MM 12VDC WIRE
Detailed Description:	Fan Tubeaxial 12VDC Square – 92mm L x 92mm H Ball 65.0 CFM (1.82m³/min) 3 Wire Leads
Current Rating (Amps):	0.250A
Voltage Range:	7 ~ 13.8VDC
Material – Frame:	Plastic
Material – Blade:	Plastic
Lifetime @ Temp.:	40000 Hrs @ 60°C

Weight	1 kg
MPN	09225SE-12Q-FT-DW
Termination	3 Wire Leads
Noise	40.0dB(A)
Air Flow	65.0 CFM (1.82m³/min)
Power (Watts)	3 W
Voltage - Rated	12VDC
RPM	3900 RPM
Manufacturer	NMB Technologies Corporation
