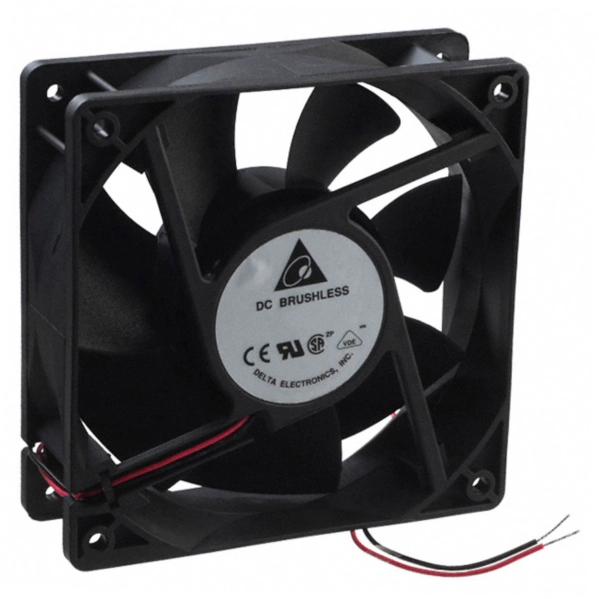

Delta AFB1212HE-R00 fan

Name: Delta AFB1212HE-R00 fan
Brand: HORVEX
SKU: AFB1212HE-R00
Price: 17.16 USD
Availability: InStock

SKU: AFB1212HE-R00

Fan Tubeaxial 12VDC Square – 120mm L x 120mm H Ball 105.9 CFM (2.97m³/min) 3 Wire Leads

Contact us for bulk price

$17,16

Trackable Standard Shipping

6-12 Days

3-6 Days

Payment Methods:

MPN:	AFB1212HE-R00
Manufacturer:	Delta Electronics
Voltage – Rated:	12VDC
Air Flow:	105.9 CFM (2.97m³/min)
Noise:	41.0dB(A)
Power (Watts):	3.84 W
RPM:	2600 RPM
Width:	38.00mm
Fan Type:	Tubeaxial
Series:	AFB
Size / Dimension:	Square – 120mm L x 120mm H
Static Pressure:	0.300 in H2O (74.7 Pa)
Bearing Type:	Ball
Features:	Locked Rotor Sensor
Termination:	3 Wire Leads
Ingress Protection:	–
Operating Temperature:	14 ~ 140°F (-10 ~ 60°C)
Approval Agency:	CE, CSA, UL, VDE
Description:	FAN AXIAL 120X38MM 12VDC WIRE
Detailed Description:	Fan Tubeaxial 12VDC Square – 120mm L x 120mm H Ball 105.9 CFM (2.97m³/min) 3 Wire Leads
Current Rating (Amps):	0.320A
Voltage Range:	4 ~ 13.2VDC
Material – Frame:	Plastic
Material – Blade:	Plastic
Lifetime @ Temp.:	70000 Hrs @ 40°C
