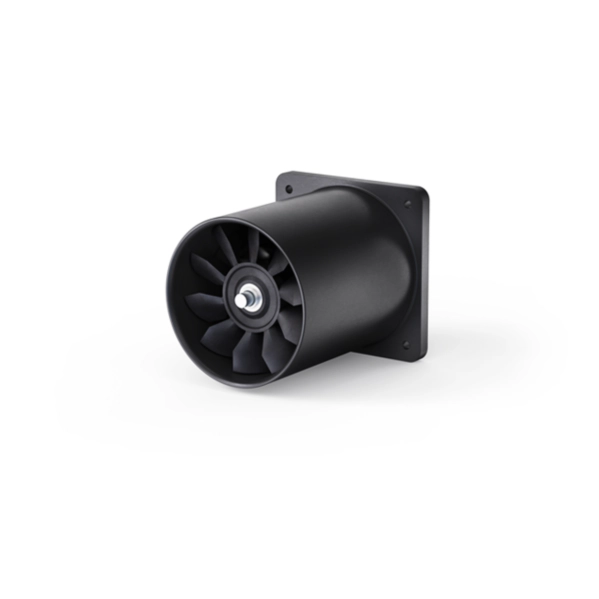

Same Sky CFM-A238V-131-480-11 fan

Name: Same Sky CFM-A238V-131-480-11 fan
Brand: HORVEX
SKU: CFM-8015-13-11
Price: 7.00 USD
Availability: InStock

SKU: CFM-8015-13-11

Fan Tubeaxial 12VDC Square – 120mm L x 120mm H omniCOOL™ Magnetic Sleeve 138.0 CFM (3.86m³/min) 3 Wire Leads

Contact us for bulk price

$7,00

Trackable Standard Shipping

6-12 Days

3-6 Days

Payment Methods:

MPN:	CFM-8015-13-11
Manufacturer:	Same Sky (Formerly CUI Devices)
Voltage – Rated:	12VDC
Air Flow:	138.0 CFM (3.86m³/min)
Noise:	48.0dB(A)
Power (Watts):	11.5 W
RPM:	3100 RPM
Termination:	3 Wire Leads
Size / Dimension:	Square – 120mm L x 120mm H
Width:	38.00mm
Static Pressure:	0.360 in H2O (89.7 Pa)
Bearing Type:	omniCOOL™ Magnetic Sleeve
Fan Type:	Tubeaxial
Features:	Auto Restart
Ingress Protection:	–
Operating Temperature:	14 ~ 158°F (-10 ~ 70°C)
Approval Agency:	CE, cURus, TUV
Weight:	0.481 lb (218.18 g)
Series:	CFM-120V
Current Rating (Amps):	0.958A
Voltage Range:	6 ~ 13.8VDC
Material – Frame:	Polybutylene Terephthalate (PBT)
Material – Blade:	Polybutylene Terephthalate (PBT)
Lifetime @ Temp.:	70000 Hrs @ 40°C

Weight	1 kg
MPN	CFM-8015-13-11
Noise	48.0dB(A)
Air Flow	138.0 CFM (3.86m³/min)
Power (Watts)	11.5 W
Voltage - Rated	12VDC
RPM	3100 RPM
Termination	3 Wire Leads
Manufacturer	Same Sky (Formerly CUI Devices)
