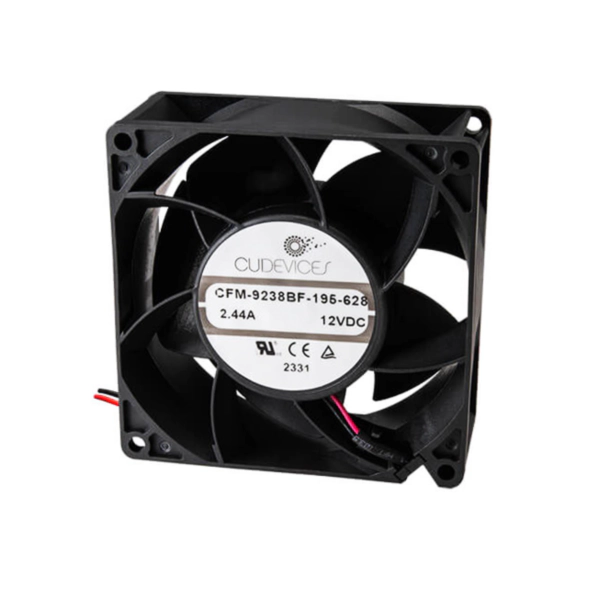

Same Sky CFM-9238BF68-295-628-20 fan

Name: Same Sky CFM-9238BF68-295-628-20 fan
Brand: HORVEX
SKU: CFM-A225C-018-327-22
Price: 21.00 USD
Availability: InStock

SKU: CFM-A225C-018-327-22

Fan Tubeaxial 24VDC Square – 92mm L x 92mm H Ball 129.6 CFM (3.63m³/min) 3 Wire Leads

Contact us for bulk price

$21,00

Trackable Standard Shipping

6-12 Days

3-6 Days

Payment Methods:

MPN:	CFM-A225C-018-327-22
Manufacturer:	Same Sky (Formerly CUI Devices)
Voltage – Rated:	24VDC
Air Flow:	129.6 CFM (3.63m³/min)
Noise:	62.8dB(A)
Power (Watts):	22.8 W
RPM:	9500 RPM
Termination:	3 Wire Leads
Size / Dimension:	Square – 92mm L x 92mm H
Width:	38.00mm
Static Pressure:	2.300 in H2O (572.9 Pa)
Bearing Type:	Ball
Fan Type:	Tubeaxial
Features:	Auto Restart, Speed Sensor (Tach)
Ingress Protection:	IP68 – Dust Tight, Waterproof
Operating Temperature:	14 ~ 158°F (-10 ~ 70°C)
Approval Agency:	CE, cURus, TUV
Weight:	–
Series:	CFM-92BF68
Current Rating (Amps):	0.950A
Voltage Range:	21.6 ~ 26.4VDC
Material – Frame:	Polybutylene Terephthalate (PBT)
Material – Blade:	Polybutylene Terephthalate (PBT)
Lifetime @ Temp.:	70000 Hrs @ 40°C

Weight	1 kg
MPN	CFM-A225C-018-327-22
Noise	62.8dB(A)
Air Flow	129.6 CFM (3.63m³/min)
Power (Watts)	22.8 W
Voltage - Rated	24VDC
RPM	9500 RPM
Termination	3 Wire Leads
Manufacturer	Same Sky (Formerly CUI Devices)
