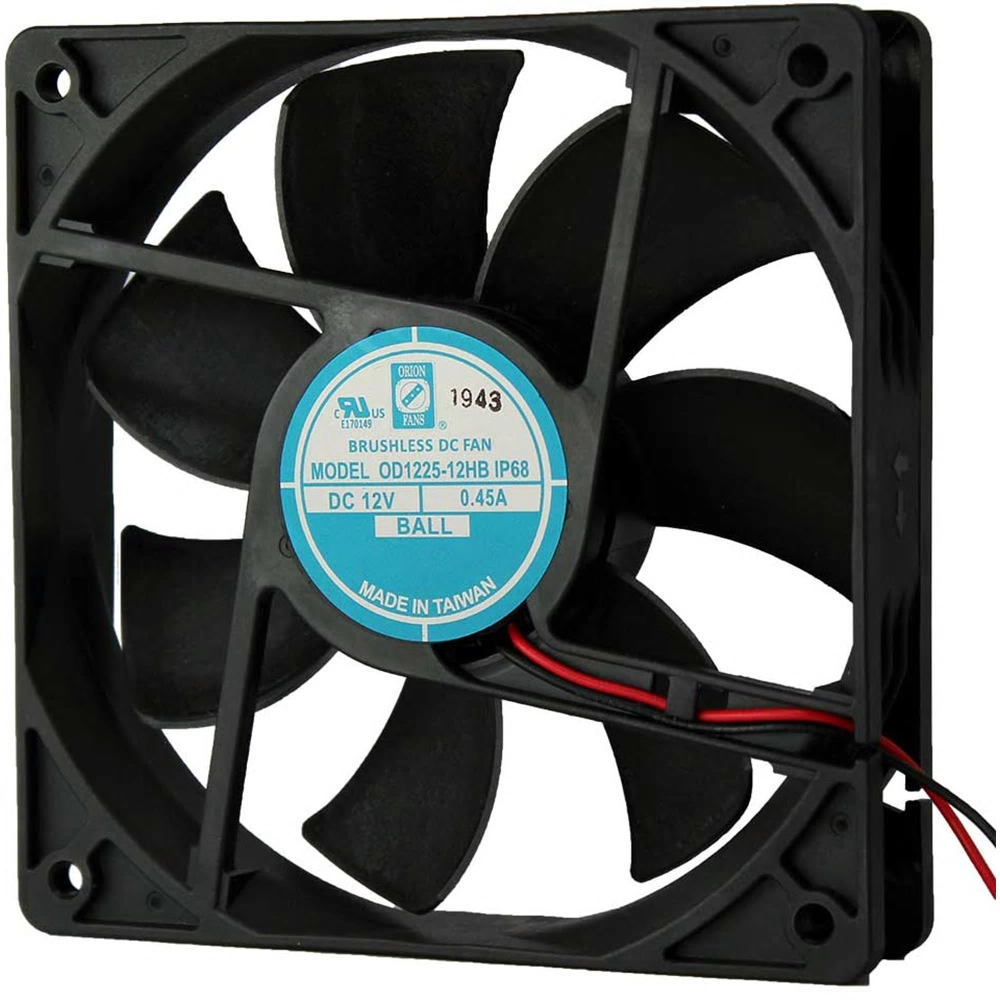

Orion (Knight Electronics, Inc.) OD1225-48MBIP68 fan

Name: Orion (Knight Electronics, Inc.) OD1225-48MBIP68 fan
Brand: HORVEX
SKU: OD1225-48MBIP68
Price: 94.00 USD
Availability: InStock

SKU: OD1225-48MBIP68

Fan Tubeaxial 48VDC Square – 120mm L x 120mm H Ball 90.0 CFM (2.52m³/min) 2 Wire Leads

Contact us for bulk price

$94,00

Standard delivery

Trackable Standard Shipping

6-12 Days

DHL Courier delivery

3-6 Days

120 days Warranty and Money back Guarantee

Payment Methods:

Description

MPN:	OD1225-48MBIP68
Noise:	35.0dB
Air Flow:	90.0 CFM (2.52m³/min)
Power (Watts):	3.5 W
Voltage – Rated:	48VDC
RPM:	2500 RPM
Termination:	2 Wire Leads
Manufacturer:	Orion (Knight Electronics, Inc.)
Size / Dimension:	Square – 120mm L x 120mm H
Width:	25.00mm
Static Pressure:	0.190 in H2O (47.3 Pa)
Bearing Type:	Ball
Fan Type:	Tubeaxial
Features:	Auto Restart
Ingress Protection:	IP68 – Dust Tight, Waterproof
Operating Temperature:	5 ~ 149°F (-15 ~ 65°C)
Approval Agency:	CE, cURus, TUV, UR
Weight:	0.341 lb (154.67 g)
Series:	OD1225
Current Rating (Amps):	0.070A
Voltage Range:	–
Material – Frame:	Polybutylene Terephthalate (PBT)
Material – Blade:	Polybutylene Terephthalate (PBT)
Lifetime @ Temp.:	60000 Hrs @ 35°C
Detailed Description:	Fan Tubeaxial 48VDC Square – 120mm L x 120mm H Ball 90.0 CFM (2.52m³/min) 2 Wire Leads

Specification

Overview

Weight	1 kg
MPN	OD1225-48MBIP68
Noise	35.0dB
Air Flow	90.0 CFM (2.52m³/min)
Power (Watts)	3.5 W
Voltage - Rated	48VDC
RPM	2500 RPM
Manufacturer	Orion (Knight Electronics, Inc.)
