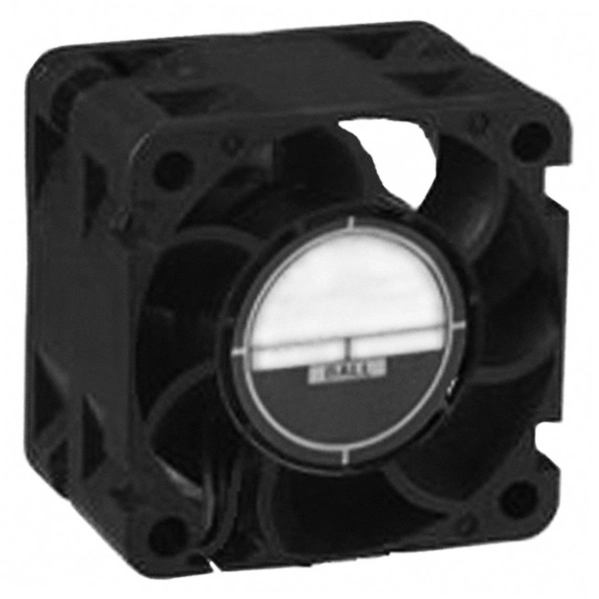

Orion OD4028-24HBXC fan

Name: Orion OD4028-24HBXC fan
Brand: HORVEX
SKU: OD180APL-12HTBIP68
Price: 11.00 USD
Availability: InStock

SKU: OD180APL-12HTBIP68

Fan Tubeaxial 24VDC Square – 40mm L x 40mm H Ball 22.0 CFM (0.616m³/min) 2 Wire Leads

Contact us for bulk price

$11,00

Trackable Standard Shipping

6-12 Days

3-6 Days

Payment Methods:

MPN:	OD180APL-12HTBIP68
Manufacturer:	Orion Fans
Voltage – Rated:	24VDC
Air Flow:	22.0 CFM (0.616m³/min)
Noise:	61.0dB(A)
Power (Watts):	10.8 W
RPM:	20000 RPM
Termination:	2 Wire Leads
Size / Dimension:	Square – 40mm L x 40mm H
Width:	28.00mm
Static Pressure:	2.630 in H2O (655.1 Pa)
Bearing Type:	Ball
Fan Type:	Tubeaxial
Features:	Auto Restart
Ingress Protection:	–
Operating Temperature:	14 ~ 158°F (-10 ~ 70°C)
Approval Agency:	CE, cURus, TUV, UR
Weight:	–
Series:	OD4028
Current Rating (Amps):	0.450A
Voltage Range:	18 ~ 26.4VDC
Material – Frame:	Polybutylene Terephthalate (PBT)
Material – Blade:	Polybutylene Terephthalate (PBT)
Lifetime @ Temp.:	70000 Hrs @ 40°C
