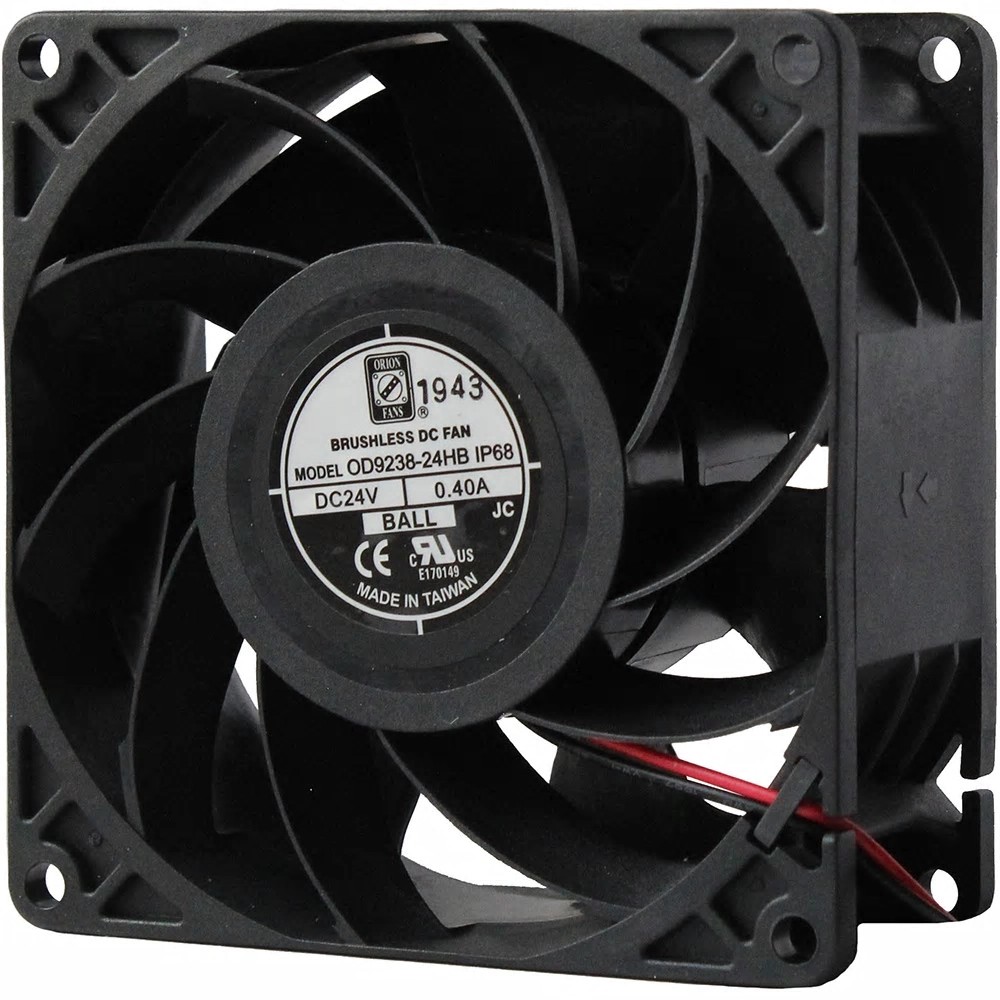

Orion (Knight Electronics, Inc.) OD9238-24HHBIP68 fan

Name: Orion (Knight Electronics, Inc.) OD9238-24HHBIP68 fan
Brand: HORVEX
SKU: OD9238-24HHBIP68
Price: 37.00 USD
Availability: InStock

SKU: OD9238-24HHBIP68

Fan Tubeaxial 24VDC Square – 92mm L x 92mm H Ball 109.2 CFM (3.06m³/min) 2 Wire Leads

Contact us for bulk price

$37,00

Standard delivery

Trackable Standard Shipping

6-12 Days

DHL Courier delivery

3-6 Days

120 days Warranty and Money back Guarantee

Payment Methods:

Description

MPN:	OD9238-24HHBIP68
Noise:	58.0dB
Air Flow:	109.2 CFM (3.06m³/min)
Power (Watts):	10.8 W
Voltage – Rated:	24VDC
RPM:	5000 RPM
Termination:	2 Wire Leads
Manufacturer:	Orion (Knight Electronics, Inc.)
Size / Dimension:	Square – 92mm L x 92mm H
Width:	38.00mm
Static Pressure:	0.860 in H2O (214.2 Pa)
Bearing Type:	Ball
Fan Type:	Tubeaxial
Features:	Auto Restart
Ingress Protection:	IP68 – Dust Tight, Waterproof
Operating Temperature:	14 ~ 158°F (-10 ~ 70°C)
Approval Agency:	cURus, TUV
Weight:	0.441 lb (200.00 g)
Series:	OD9238
Current Rating (Amps):	0.450A
Voltage Range:	–
Material – Frame:	Polybutylene Terephthalate (PBT)
Material – Blade:	Polybutylene Terephthalate (PBT)
Lifetime @ Temp.:	70000 Hrs @ 40°C
Detailed Description:	Fan Tubeaxial 24VDC Square – 92mm L x 92mm H Ball 109.2 CFM (3.06m³/min) 2 Wire Leads

Specification

Overview

Weight	1 kg
MPN	OD9238-24HHBIP68
Noise	58.0dB
Air Flow	109.2 CFM (3.06m³/min)
Power (Watts)	10.8 W
Voltage - Rated	24VDC
RPM	5000 RPM
Manufacturer	Orion (Knight Electronics, Inc.)
