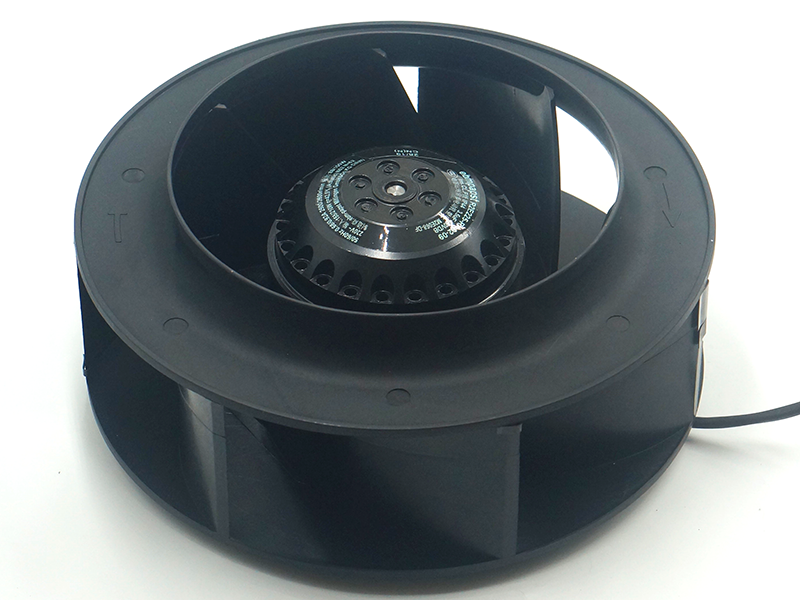

ebm-papst R2E225-RA92-09 fan

Name: ebm-papst R2E225-RA92-09 fan
Brand: HORVEX
SKU: R2E225-RA92-09
Price: 141.88 USD
Availability: InStock

SKU: R2E225-RA92-09

Fan Motorized Impellers 230VAC Round – 225mm Dia Ball 415.2 CFM (11.63m³/min) 4 Wire Leads with Splice Terminals

Contact us for bulk price

$141,88

Trackable Standard Shipping

6-12 Days

3-6 Days

Payment Methods:

MPN:	R2E225-RA92-09
Manufacturer:	ebm-papst Inc.
Voltage – Rated:	230VAC
Air Flow:	415.2 CFM (11.63m³/min)
Noise:	–
Power (Watts):	210W
RPM:	2600 RPM
Width:	99.00mm
Fan Type:	Motorized Impellers
Series:	RadiCal® R2E225RA
Size / Dimension:	Round – 225mm Dia
Static Pressure:	–
Bearing Type:	Ball
Features:	Capacitor, Thermal Overload Protector (TOP)
Termination:	4 Wire Leads with Splice Terminals
Ingress Protection:	IP44
Operating Temperature:	-13 ~ 149°F (-25 ~ 65°C)
Approval Agency:	CCC, CE, EAC
Description:	MOTORIZED IMPELLER
Detailed Description:	Fan Motorized Impellers 230VAC Round – 225mm Dia Ball 415.2 CFM (11.63m³/min) 4 Wire Leads with Splice Terminals
Part Status:	Active
Current Rating (Amps):	0.920A
Voltage Range:	–
Material – Frame:	–
Material – Blade:	Polyamide (PA6), Nylon 6, Fiberglass Reinforced

Package size: 32*29*16cm
Packing weight: 2.9KG
DHL Gross weight: 3-3.5 KG

Weight	5 kg
MPN	R2E225-RA92-09
Termination	4 Wire Leads with Splice Terminals
Noise	10.7 dBA
Air Flow	415.2 CFM (11.63m³/min)
Power (Watts)	210W
Voltage - Rated	230VAC
RPM	2600 RPM
Manufacturer	ebm-papst Inc.
